Felling Trailers' Advanced Design IT-I Series

Felling Trailers, Inc.’s Engineering Team has been working diligently on an advanced design for the IT-I Series model line. Officially released on January 1st, 2019, this refined industrial tilt trailer design incorporates additional standard features, structural strength, and ease of operator use. The new IT-I (Industrial Tilt) design will be seen on Felling’s 2020 model year IT-I tilt trailers.

New Industrial Tilt Trailer Design

IT-I Series Advanced Standard Specifications

  • Hitch area has been redesigned with a more user-friendly, integrated nose plate.
  • Cylinder Lugs, the point where the cushion cylinders(s) attach to the crossmembers, the redesign incorporates additional structural integrity for cylinder crossmembers.
  • Lighting – Dual stop, turn, taillights located on the rear of the fenders have been incorporated into the standard design, delivering ideal placement of the light system along with safeguarding it from damage when loading/unloading equipment.
  • Tie Down Placement – D-rings that were once located on the topside rail behind the fender on the rear of the tilt deck are now located on the side of the of the trailer bed. This has been done so that the D-ring location is at the widest point of the deck providing operator’s ease of use when securing equipment.
  • Operator friendly tilt deck latch design.

Model Changes / Enhancements from the Previous Design

  • FT-10IT-I and FT-12IT-I are built to the same spec (7k axles and 16″ tires); however, the FT-10IT-I does not have reflective tape and has a GVWR rating of 9,980lbs.
  • FT-14IT-I now has 215/75R17.5” tires on plate wheels standard.
  • New design FT-14IT-I has an 8” I-beam frame compared to the 6” I-beam on the previous model design.

Interested in learning more about the industrial tilt, IT-I Series model line, by Felling Trailers? Contact us online or call 1.800.245.2809.

IT-I Quick Quote
IT-I Series is unique from other Felling Trailer models due to its construction

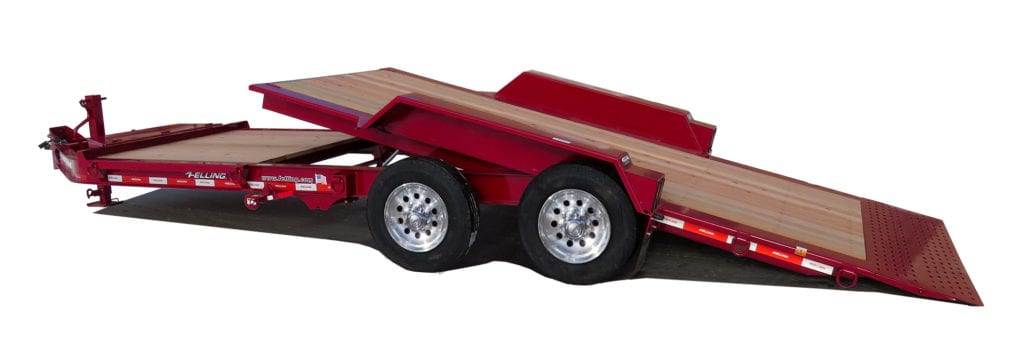

Pictured above is the Advanced Design industrial tilt trailer, FT-16 IT-I, painted in Felling Trailer’s 45th anniversary, limited edition Ruby Red Metallic color.



  1. I bought a new ft 16 it I the tilt will not secure when the trailer is I. The down position. This is very dangerous Please call me at 828 421 2551 . This is a brand new trailer picked up Friday

    • Good Morning Al, we are so sorry you are having issues with your trailer. I have given your contact info to our Service manager and he will be in contact with you this morning. Where are you located and if you have it handy could you provide the VIN# of the trailer.

      Thank You
      Felling Trailers

      • Al Wallis says

        All fixed shortly after I posted this message felling contacted me and took care of the issue.
        Thank you very much. Great trailer and customer service
