Tilt Slide Axle (TSA) Now Available at Felling Trailers

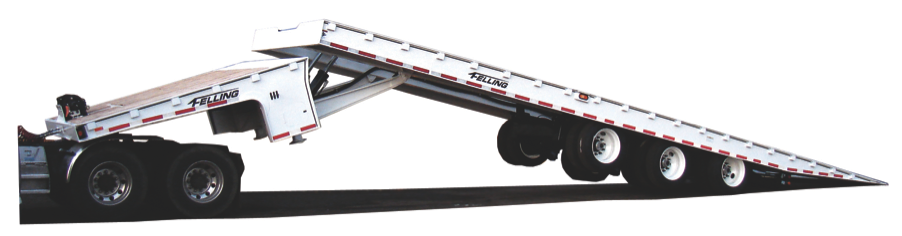

(SAUK CENTRE, MINNESOTA, January 13, 2012) –Felling Trailers has again expanded its product line with the FT-80-3 Tilt Slide Axle (TSA). Primary applications for Felling’s FT-80-3 TSA include moving 40’ containers and towing an array of equipment. The FT-80-3 TSA runs on 2 “V” rollers and 6 flat rollers and has all functions available on a remote control option. It is available in three load capacities and has a 6-7° load angle. Its cylinders are contracted when in transport position and extend to slide the axles forward so that they are protected from salt and other elements.

Standard Equipment:

  • Load Capacity: 70,000 lb. FT-70-2 TSA; 80,000 lb. FT-80-3 TSA; or 100,000 lb. FT-100-3 TSA
  • (2 or 3) 25,000 lb. axles
  • Brakes: ABS air brakes
  • 17.5” tire size
  • Tie downs every 2’
  • Suspension – moves forward 16’
  • 6-7° load angle
  • Deck width: 102” standard (wider deck width optional)
  • Deck height at knife edge: 39.5”
  • White oak 2” nominal deck
  • 9” standard cross beams
  • D.O.T. approved LED lighting with Sealed Wiring Harness
  • HD Industrial urethane paint and primer with 3-year Paint Warranty
  • 5-year Limited Structural Warranty

TSA

For more information, please contact 1.800.245.2809, [email protected] or visit them on the web at www.felling.com. You can also follow them on Twitter (@FellingTrailers) and Facebook (Felling Trailers, Inc.).

Felling Trailers is a Full Line Trailer Manufacturer located in Central Minnesota that was started in 1974 by Mr. Merle J. Felling. Felling Trailers, Inc. has grown from a small shop to a factory and office complex that today covers over 132,000 square feet. Felling Trailers currently manufactures 3,000 plus trailers a year ranging from a 3,000 lb utility trailer to a 120,000 lb hydraulic gooseneck trailer, and its standard trailer line includes over 220 models. Felling’s pride and differentiation is its customized trailer division.  Their engineers utilize the latest industry leading design techniques along with their experienced metal craftsmen and cutting edge technology to turn its customers’ conceptual trailer needs into a tangible product. Felling continually researches and implements new technologies to reduce lead-time and increase production in the manufacturing plant. Felling Trailers provides a high quality product that is distributed across North America and internationally. For more information, please contact 1.800.245.2809, [email protected] or visit them on the web at www.felling.com. You can also follow them on Twitter (@FellingTrailers) and Facebook (Felling Trailers, Inc.).
