Home Trailers Construction Trailers Deck-Over Tilt Trailers Air Tilt Trailer

Air Tilt Trailer

Felling’s Air Tilt Trailers give operators the towing ability of a TAG trailer with the versatility of a tilt.

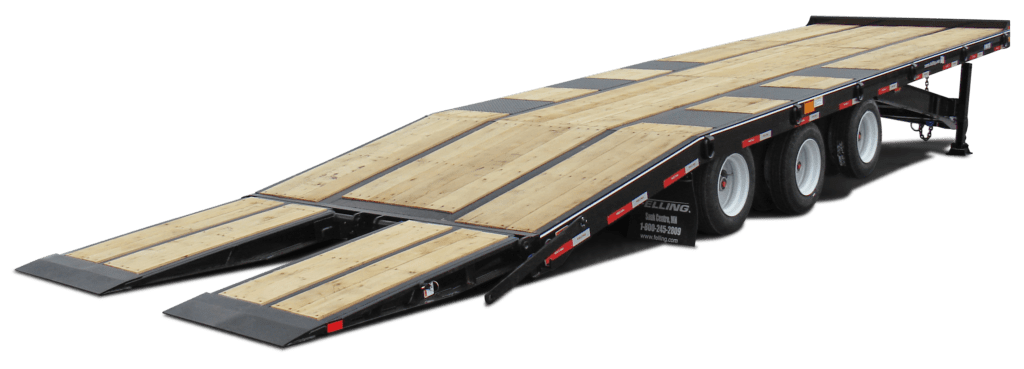

FT-50 3 TA - 79384JDM Deck Over Air Tilt Trailer
FT-0-2 TA - 103850NTU - Deck Over Air Tilt Trailer

The Air Tilt trailer utilizes air power from the tow vehicle to fill two airbags, which then raise the trailer smoothly; the airbag will then keep the deck in the tilted position to allow for loading/unloading of multiple pieces of equipment. Superior towing capability and balance were achieved by placing the axles further back on the Air Tilt model than other tilt trailers on the market. These models are also great for transporting low clearance equipment such as pavers, scissor lifts, forklifts, and more with their low-clearance loading angle.

Not sure how your equipment will load?

Below is a demonstration video showing how the Air Tilt trailer is the perfect trailer when it comes to loading multiple pieces of equipment to low clearance equipment like paving machines.

Product Specs

  • Height: 33″ loaded
  • Weight: 6,200 lbs. – 11,200 lbs.
  • Towing Capacity: 19,700 to 50,000 lbs

Features

  • 4″ Pierced Jr I-Beam Crossmembers
  • 7″ – 8″ Channel Side Rails
  • Tread Plate Wheel Covers
  • Engineered, Cambered Fabricated 14″ Main Beams
sourcewell contract renewal

Air Tilt Trailer Product Sheets

View our trailer model details in the product sheets below. If you’re ready for a quote fill out the request a quote form.

FT-20-2 TA (PDF)
FT-24-2 TA (PDF)
FT-30-2 TA (PDF)
FT-40-2 TA (PDF)
FT-45-2 TA (PDF)
FT-50-3 TA (PDF)
