Air Ramp Technology - Over the Road Semi Trailers

Air Ramp Technology Now an Option for Felling Trailers’ Over the Road Semi Trailers

(SAUK CENTRE, MINNESOTA, May 31, 2013) –Felling Trailers’ air ramp technology is such a popular option among several of its trailer models that Felling Trailers now offers it on their Over the Road (OTR) semi-trailers. Felling air ramps operate via an airbag system that works off of the same supply as the air brake system. Thus, any air-brake equipped truck can operate a Felling Trailer equipped with air ramps without any other external power source (e.g. battery, gas engine or truck powered hydraulic system). Additionally, air ramps have lower maintenance costs over time and also eliminate the possibility of environmental cleanup issues associated with hydraulic ramp leaks.

Felling has outfitted air ramps on everything from a 20,000-pound capacity tag trailer to a 100,000 pound hydraulic detach trailer. The airlift system is able to lift in excess of 5,000 pounds, which gives it more than enough power, and is available in 36”, 45”, and full-width options on any air-brake equipped trailer.

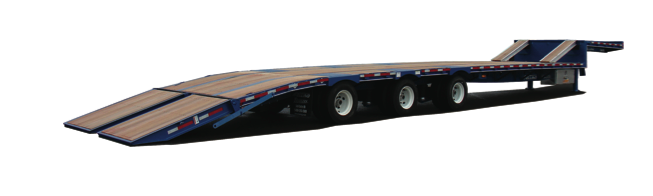

Air Ramp80-3OTR Air Rmap

For more information, please contact 1.800.245.2809, [email protected] or fill out the form below.
