Stationary Platform Dump

Stationary Platform Dump

Just another way that Felling Builds It YOUR WAY.

The Stationary Platform option is available on all of Felling’s Hydraulic Dump trailers, from our Drop-Deck dumps to our Deck-Overs.

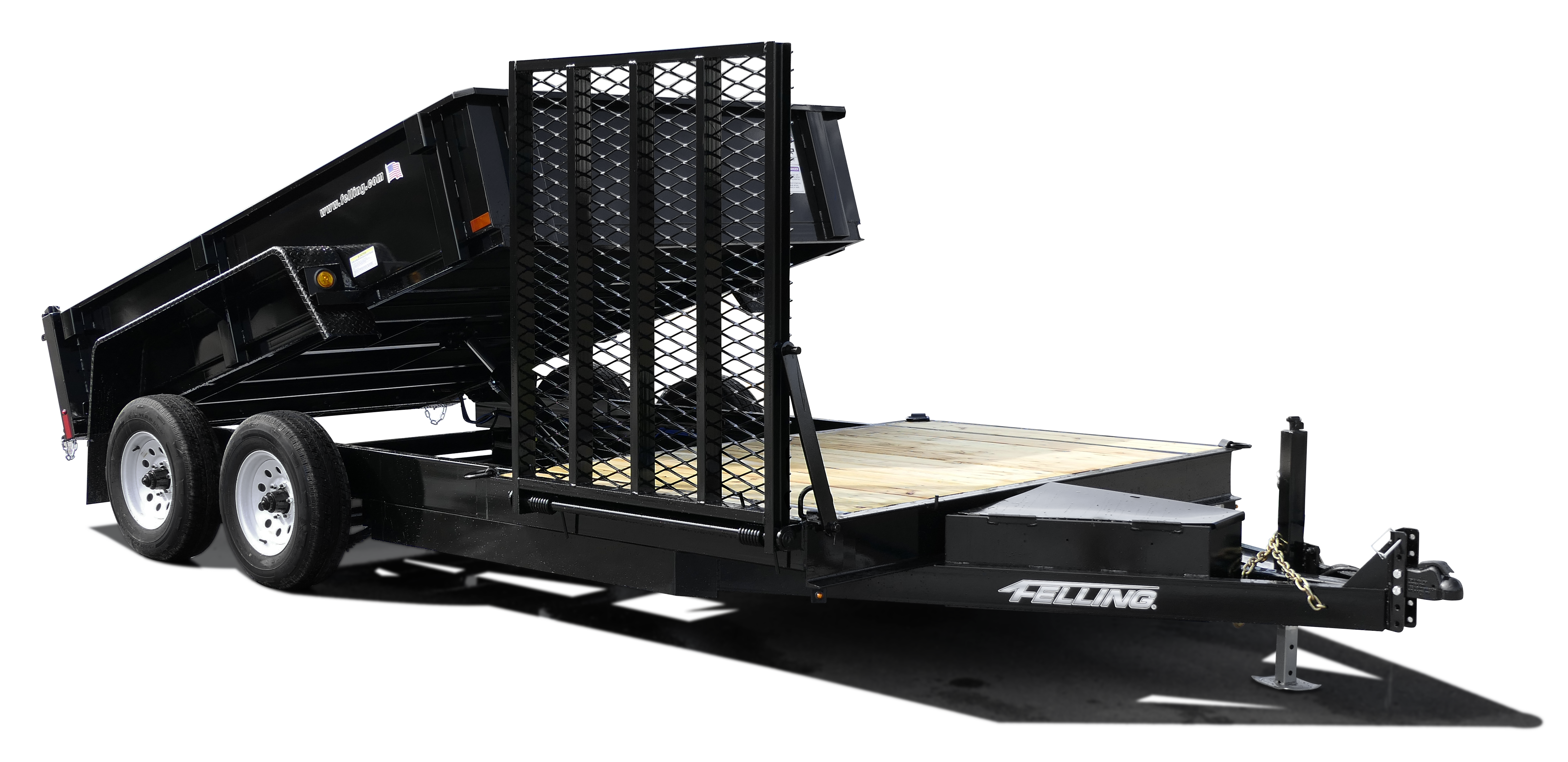

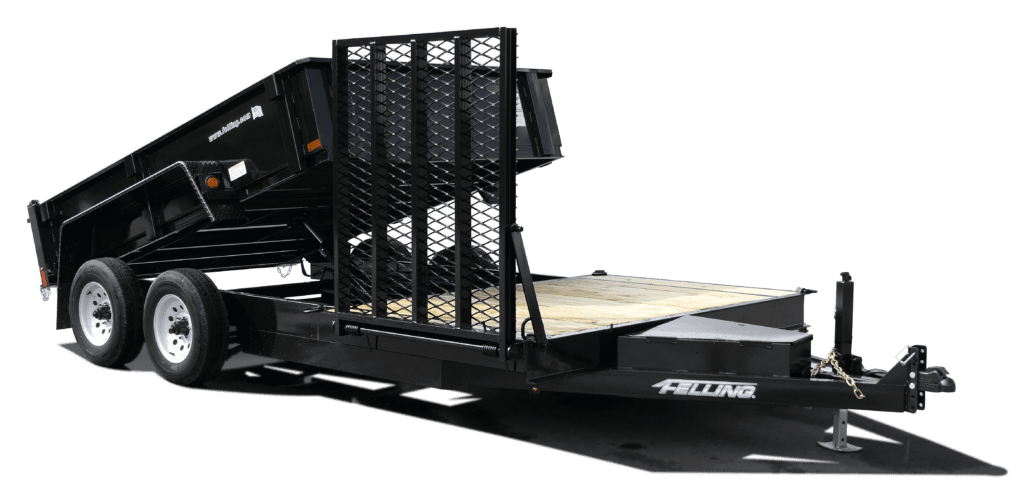

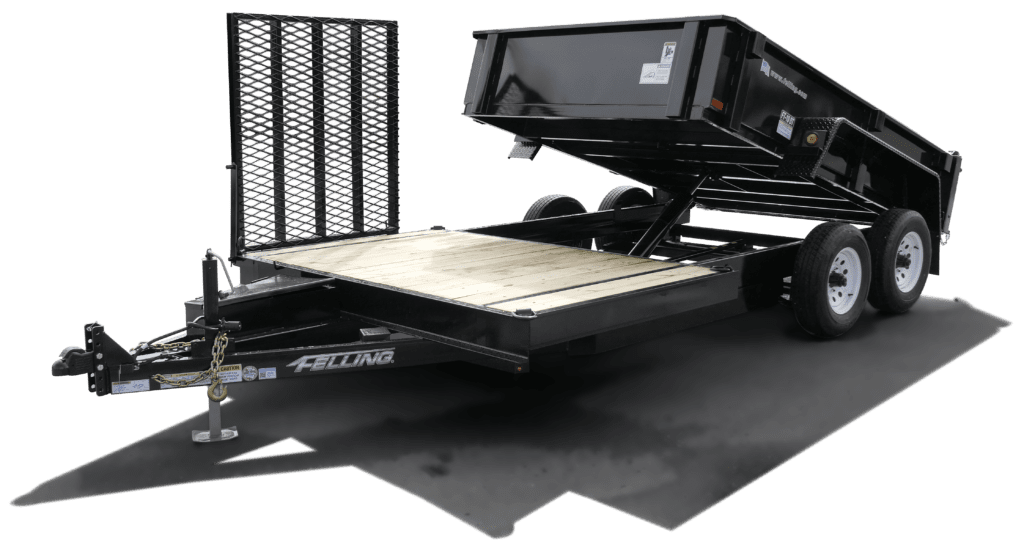

Stationary Platform Dump dump trailer with a front open deck with fold down ramp to load equipment

One of the first Stationary Platform Dump trailers was built to spec for a Concrete Cutting company located in the Western United States. This company knew that Felling could build a trailer for their exact needs.



What they needed:

They were in need of a hydraulic dump trailer, but not just an ordinary dump; they needed one that had a stationary platform in front of the dump box to accommodate their MT52 Mini Track Loader.

How we built it:

Working together with our Engineering Dept., the FT-10 DT HD-SP was created. The trailer consisted of an 8’ hydraulic dump box with a 42” wide by 96” long stationary platform in front of the dump box with a total deck length of 12’. The stationary platform is flush with the frame on the outer sides of the trailer to comfortably fit the Mini Track Loader along with its attachments and has a ramp lock in place at a 90º angle. The ramp is a 48” long by 42” wide flip-up ramp, which is reinforced under the track footprint for loading with spring assist to provide ease and safety in raising and lowering of the ramp.

Felling Trailers, Inc. is an ISO 9001:2015 Certified Company and is WBENC-Certified WBE.
