No matter the industry, operator safety and ease of use and maintenance are key elements that are taken into account when a company is looking into equipment acquisition. Felling’s newly designed Utility Pole Trailers are fully engineered and documented products that an operator can be assured of many years of trouble-free service.
Felling Trailers has three lengths of Utility Pole Trailers available:
• 20’ retracted to 30’ extended
• 24’ retracted to 40’ extended
• 29’ retracted to 46’ extended
(Payload capacities from 7,980 lbs up to 36,600 lbs are available. Electric brakes are standard and all can be equipped with air brakes if needed.)
Key Benefits of Felling Trailers’ Utility Pole Trailers
Ease of Use – Equipped with a 2″ cold rolled steel, positive locking adjustment pin and designed with a notched flange welded on the pin, the flange notches have to pass through two tabs welded 90 degrees from each other assuring a positive locked position. The 2″ positive locking adjustment pin is attached to the trailer with a chain to prevent loss.
Safety in Design – The Utility Pole trailers are equipped standard with center and rear, full width, 5″ x 6.7# double c-channel bolsters with sliding, lever locking removable stanchions. There is a lynchpin with a lanyard attached at each end of the bolster. A 45” wide front bolster with a 4” strap and binder is standard. Optional front bolsters include 60” and 95” wide. Both are double c-channel construction and include a 4” strap and binder along with lever locking removable stanchions.
Utility Pole Trailer Re-engineered for Safety & Ease
Multiple load securement points are located down the mainframe rail, three (3) d-rings provide ideal tie-down points for the material being carried in the cargo area.
• 10″ x 6″ receiver tube
• 12 gauge steel floor with drainage perforations
• 3″ Crossmembers
• All wiring and air lines (when equipped with air brakes) are ran Internally traveling in a Heavy Duty Energy Chain
• No User intervention is required for the wiring or airlines when extending and retracting the tongue
• Positive Locking Adjustment Pin with chain attached to trailer prevents loss
Learn more about the Utility Pole Trailers or other utility and telecom trailer solutions on our website or call 1-800-245-2809. You can also fill out this simple form, and we will reach out to you!

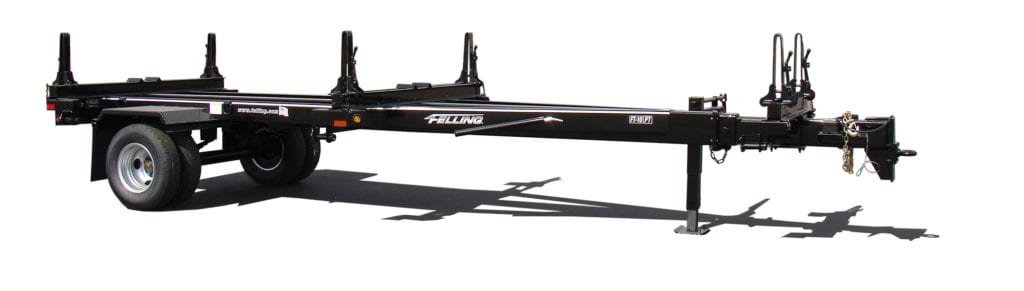

Felling Trailers’ Utility Pole Trailer shown is an FT-10-1 PT in 24’/40’ length
