Paving equipment brings a different set of challenges to the jobsite, especially when it comes to transporting it. Machines like asphalt pavers, rollers, and compactors are heavy, low to the ground, and can be difficult to load. That combination puts more pressure on trailer design than many other applications. Load angle, deck height, and stability all play a role in how safely and efficiently equipment can be moved. That’s where well-designed paver trailers stand out, built to handle the weight, clearance, and workflow demands that come with paving work.
Why Paving Equipment Requires a Different Approach
Not all equipment loads the same, and paving equipment places greater demands on the trailer during loading. Low ground clearance increases the risk of dragging or catching at transition points. Heavier machines place more stress on ramps and decks, and because equipment is often loaded and unloaded multiple times in a day, consistency matters just as much as capability. These factors make it clear that trailer design isn’t just about capacity. It’s about how the trailer performs during every step of the loading process. Even small changes in ramp design or transition points can impact how smoothly equipment moves onto the deck, especially with low-profile machines like pavers and rollers. A more gradual approach, better-supported ramps, and a stable deck all contribute to a more controlled loading experience. When those elements work together, loading becomes more predictable, reducing unnecessary repositioning and keeping the job moving along.
What to Look for in Paver Trailers
Low Load Angles and Smooth Transitions
A gradual incline makes a measurable difference when loading paving equipment. Trailers designed with a low load angle and double incline beavertail help reduce the risk of hang-ups and provide a smoother transition from ground to deck. This is especially important for machines with limited clearance, where even small changes in angle can impact how easily they load.
Capacity That Matches the Equipment
Paving equipment can vary widely in size and weight, which is why trailers in the 20,000-50,000 lb range are often the right fit. Beyond capacity, proper weight distribution across the trailer is key. A well-balanced load improves towing stability and helps maintain control during transport.
Stability During Loading
Loading heavy equipment requires more than just ramps. The trailer itself needs to feel stable and predictable. A solid frame and well-designed deck help minimize movement during loading, which supports safer operation, especially on uneven surfaces or active jobsites.
Ramp Systems That Support Consistent Loading
Ramp design plays a major role in how efficiently equipment can be loaded. Options such as air ramps or hydraulic ramp systems enable controlled, reliable loading. This becomes especially valuable on paving jobs, where equipment may be loaded and unloaded several times throughout the day.
Felling Trailers for Paving Equipment
Felling offers several trailer configurations that align well with the demands of paving equipment. Each design supports a different type of workflow depending on the equipment being transported.

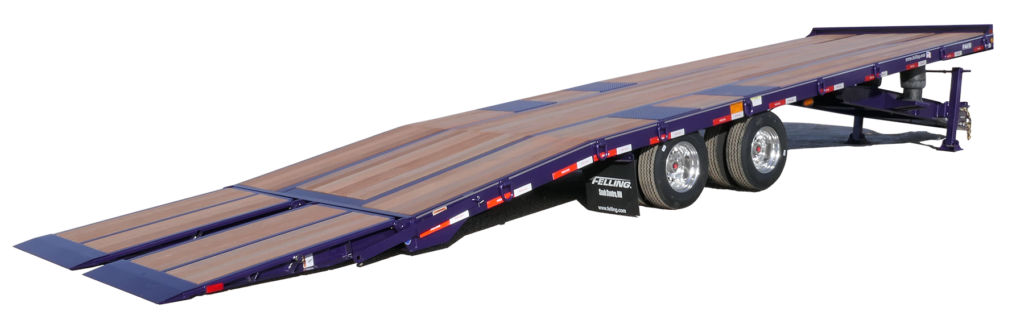

Air Tilt Trailers

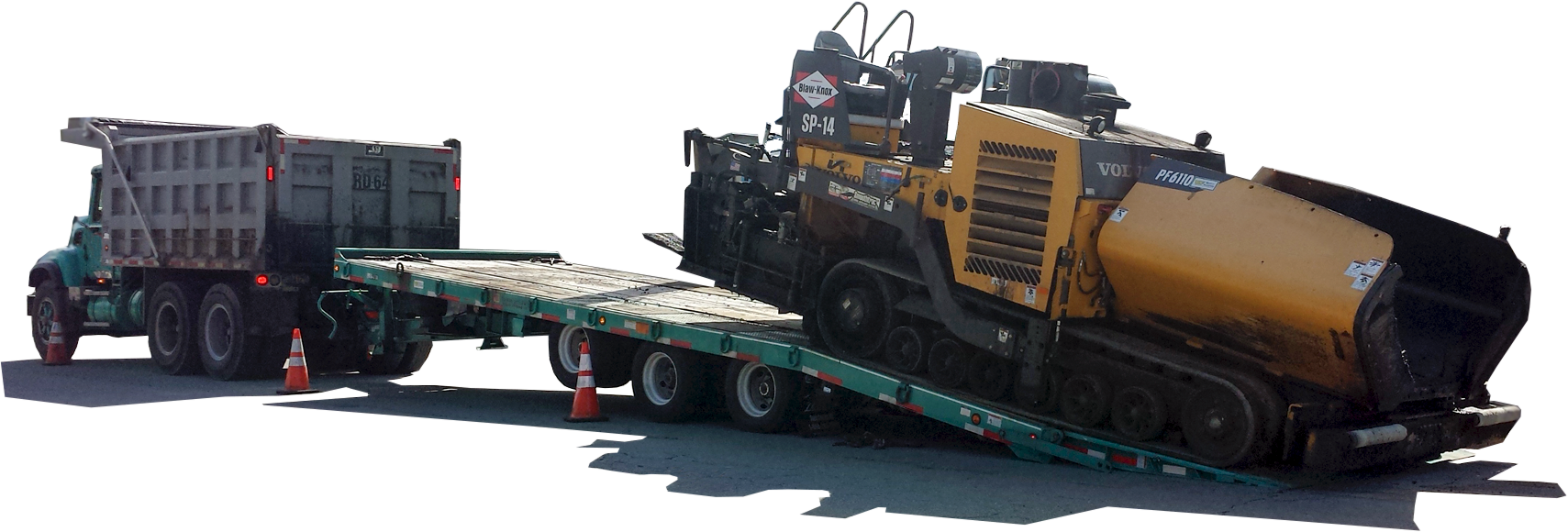

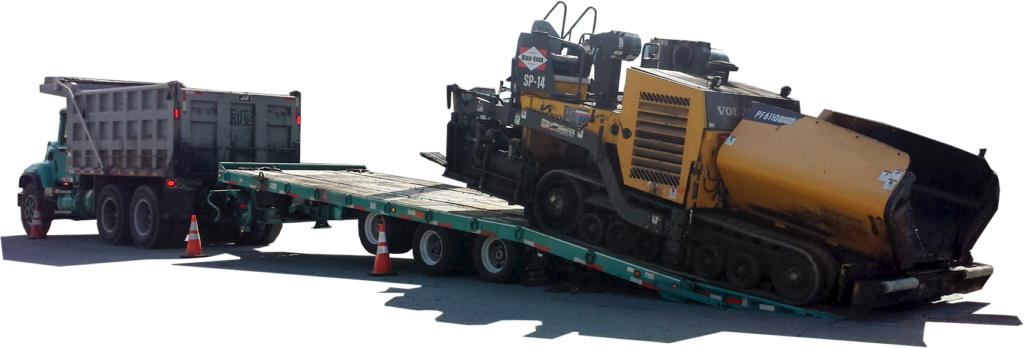

Air tilt trailers provide a low, gradual loading angle by tilting the deck, reducing the approach angle required compared to traditional ramp setups. This helps minimize the breakover point between the ground and the trailer, which is especially important for low-clearance equipment like pavers and rollers. When optioned with air ramps, an Air Tilt trailer can provide a load angle as low as 7°, further improving the transition onto the deck. With a more gradual transition, equipment can move onto the deck with less risk of dragging or catching, and with better control during loading. This design also helps reduce the amount of repositioning often needed when working with heavier machines. It’s a practical option for smoother, more controlled loading.

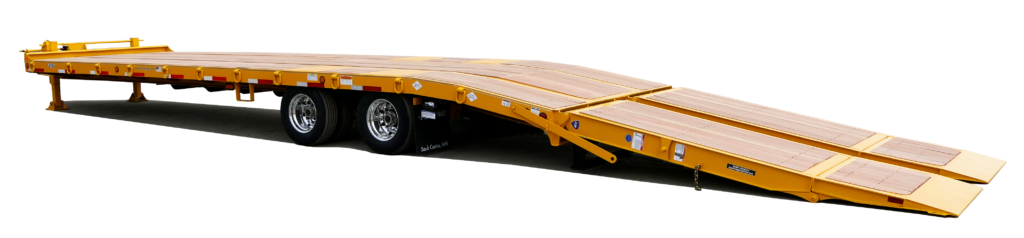

Low Profile Trailers
Low-profile trailers keep the deck closer to the ground, naturally reducing load angles. For paving equipment, the lower deck height helps create smoother transitions during loading and unloading, especially for machines with limited ground clearance. A lower center of gravity also contributes to more stable transport, which becomes increasingly important when hauling heavier equipment like rollers or compactors. Felling’s Low Pro Paver series is designed specifically for paving contractors, with an 11′ ramp length that provides a shallow load angle for easier loading of most paving equipment. The patented air-operated bi-fold ramps (U.S. Patent 11,613,197) extend into position before contacting the ground, helping prevent marring on finished surfaces. Felling offers three models in the Low Pro Paver lineup. These ramp systems, combined with the low-profile design, help maintain better control during loading and reduce the likelihood of equipment shifting or needing repositioning. It’s a reliable choice for transporting compact equipment and machines with limited clearance.

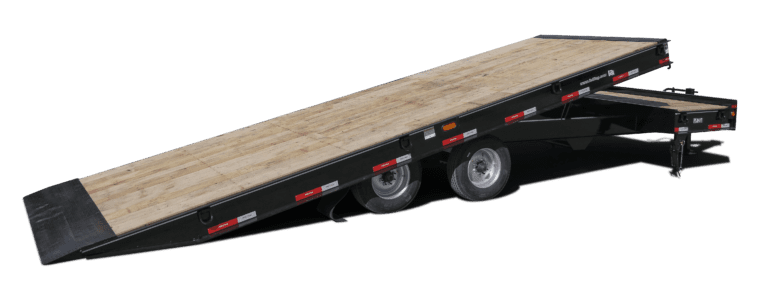

Hydraulic Tilt Trailers
Hydraulic tilt trailers offer increased width and higher capacity by positioning the deck above the wheels. This design creates a full-width platform, making it easier to accommodate wider paving equipment or machines that require more space. They are standard with a stationary platform at the front of the deck, providing a static space for loading materials and equipment. They can be optioned with a full-length tilt bed. The hydraulic cushion cylinder system allows the deck to tilt smoothly for loading and unloading, creating a more gradual transition as equipment moves onto the trailer. This is especially beneficial for low-clearance machines like pavers and rollers, where controlling the approach angle helps reduce the risk of contact at transition points. The added deck space is especially useful when hauling heavier equipment, where proper positioning helps improve stability during transport. Hydraulic tilt trailers are a practical solution when capacity and usable deck space take priority, particularly for larger paving equipment or multi-machine loads.
Ramp Configurations That Fit the Job
Across these trailer types, ramp systems are designed to support real-world use. Whether using air ramps or hydraulic options, the goal is to create a controlled loading experience that reduces operator effort and improves consistency across multiple loads.
How These Trailers Fit Into the Workday
Transport is just one part of the job. Paving work often involves multiple stages, from site prep to final passes; paving equipment plays a role at every stage.
A typical workflow might involve transporting a roller or skid steer to the site early in the day, using it for grading or compaction, and then reloading it once that phase is complete. On larger jobs, equipment may be moved more than once as work progresses. In these situations, the trailer becomes part of the workflow rather than just a means of transport. Trailers that support smooth loading, stable transport, and efficient unloading help reduce delays and keep operations moving. Small improvements in how equipment is handled can add up over the course of a full workday. Paving work depends on precision, timing, and efficiency. The equipment supporting it needs to perform the same way. Well-designed paver trailers help ensure that equipment can be moved safely and consistently, so crews can stay focused on the work that matters most.
