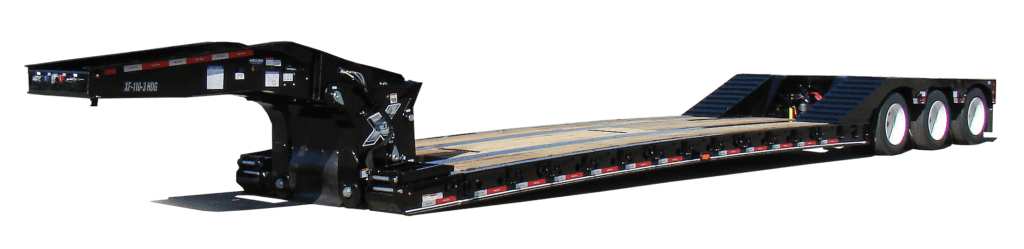

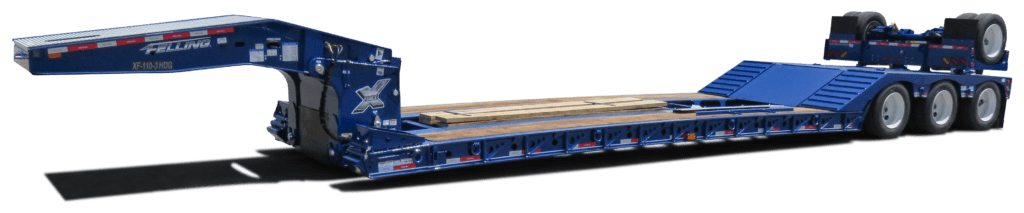

“Super Low” SL Series
The X-Force SL Series provides an 18” usable level deck height with a 6” ground clearance, making it an ideal spec for Carriers that specialize in extra-tall cargo/equipment transport. The low loaded deck height is ideal for a multitude of applications due to the full-width level deck as opposed to a drop-side model. Felling Trailers designed and engineered the SL Series with versatility and functionality in mind knowing that with changing markets, Carrier’s cargo/equipment loads vary.
The versatility offered with the 18” usable level deck height allows a carrier to transport cargo/equipment as asphalt milling machines, paving equipment, track excavators, etc. that have tall transport heights, ultimately keeping the Carrier’s wheels and payday rolling.
Product Specs
- Capacity: 67,800 lbs. to 119,000 lbs.
- GVWR: 85,300 lbs. to 140,500 lbs.
- Deck Height (loaded): 18″ Loaded, 6″ Ground Clearance
Features
- 13′ Hydraulic Detachable Gooseneck 108″ Swing Clearance
- 5 Position Ride Height Cam Blocks
- Rear Deck & Trunnion Flip Axle Ready, Plumbing and Brackets
- Pullout HD Outrigger at Front
- Plumbed for Wet Kit with Hyd. Couplers, Pressure- 3/4″ Pioneer, Male 6602-12-12, Return- 3/4″ Pioneer Female 6601-12-12 ** 3,000 PSI Required **
X-Force SL Series Product Sheets
View our trailer model details in the product sheets below. If you’re ready for a quote fill out the request a quote form.
